The Complete All-in-One Bundle: Power, Precision, and Versatility for Every Task!
Simplify your life with the Home, Garden, and Car Set, a comprehensive toolkit designed to tackle every maintenance, repair, and improvement project. From home repairs and garden care to automotive tasks, this set combines power, precision, and convenience in one compact solution.
Featuring tools like the Impact Drill, Impact Driver, Angle Grinder, Blower, Cleaning Machine, Inflator, Hedge Trimmer, and Combination Hammer, this set equips you for a wide range of applications. Whether you’re hanging shelves, trimming hedges, inflating tires, or polishing metal, this bundle saves you time, space, and money—making it the ultimate toolkit for homeowners, DIY enthusiasts, and lite professionals.
The Complete All-in-One Bundle: Power, Precision, and Versatility for Every Task!
Cordless Power Unit: Makita-Compatible Batteries
"Unleash the Power of Compatibility: DYB-21BL with Makita-Compatible Batteries"Experience unmatched convenience with the DYB-21BL with Makita-Compatible Batteries designed to seamlessly integrate with Makita batteries for the main unit (not attachments or heads). Whether you’re a DIY enthusiast, a hobbyist, or a lite professional, this system transforms your tasks with 18 interchangeable heads for home, garden, car, steel, and wood projects—all in one compact, lightweight, and powerful tool.
Key Feature
1. Makita-Compatible Design:
- Use Makita batteries on the DYB-21BL main unit, ensuring flexibility for tool owners.
- DYB-21BL batteries can also power Makita tools, creating a dual-compatible ecosystem.
2. Three-Speed Operation:
- Low (0–13,000 RPM): Ideal for precision tasks like screwing or drilling into soft materials.
- Medium (0–20,000 RPM): Perfect for trimming, sanding, or basic cutting tasks.
- High (0–24,000 RPM): Provides maximum power for heavy-duty cutting, grinding, and more.
18 Interchangeable Attachments:
- Covers a wide range of applications, from drilling and cutting to gardening and cleaning.
- Examples include impact drills, chain saws, trimmers, and blowers.
Battery Indicators:
- 75%-100%: Fully charged and ready.
- 50%-75%: Mid-level charge.
- 25%-50%: Low charge—time to recharge.
Compact and Lightweight:
- Weighing only 0.56 kg, it’s easy to handle for extended periods.
Built-In Safety Features:
- Automatic battery shutoff to prevent overheating or over-discharging.
- Reversing switch with a safety lock for secure operation.
Technical Specifications
Model: DYB-21BL
Rated Voltage: D.C. 18V - 21V max (20V compatible)
Battery Options: 2.0Ah and 4.0Ah lithium-ion
Makita Compatibility: Compatible with Makita batteries and tools
No-Load Speed (RPM): Low: 0 - 13,000 / Medium: 0 - 20,000 / High: 0 - 24,000
Net Weight: 0.56kg
Battery Indicators: 75%-100%, 50%-75%, 25%-50%
Tool Compatibility: 18 interchangeable attachments
Home Set Specifications

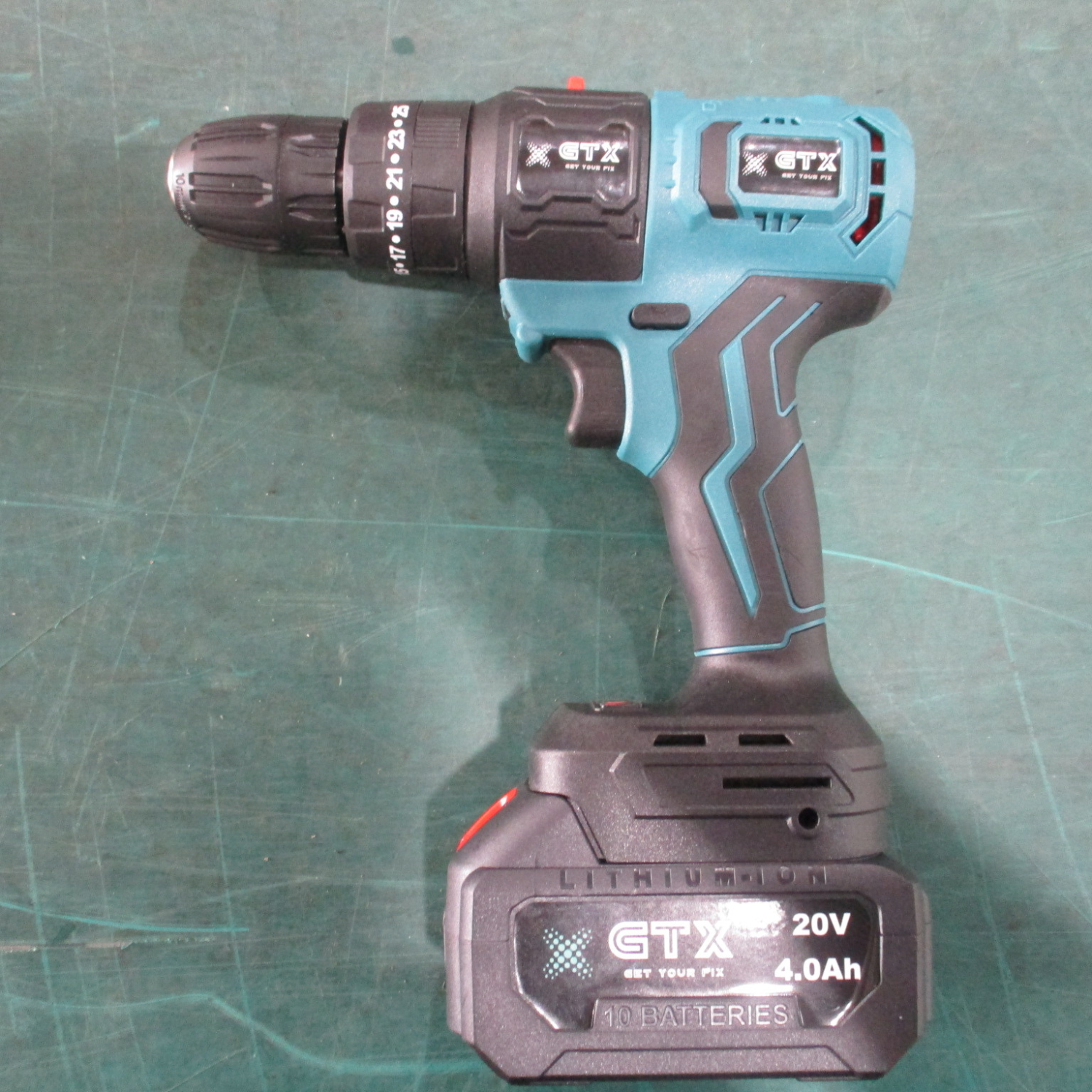

ImpactDrill Attachment
Technical Specifications
• Model: DYB-2103
• Chuck Size: 10 mm
• Torque: 32 N·m
• Clutch Settings: 25+1 adjustable torque levels.
• No-Load Speed (RPM):
o Low: 0–400 RPM
o High: 0–1,450 RPM
• Blows per Minute (BPM):
o Low: 0–6,000 BPM
o High: 0–21,000 BPM
• Net Weight: 0.49 kg
Features of the Element
1. Adjustable Torque:
o 25+1 clutch settings to fine-tune torque for precision fastening and drilling tasks.
o Torque levels allow versatility, from light material drilling to heavy-duty fastening.
2. Two-Speed Functionality:
o Low Gear: For high-torque applications like driving screws.
o High Gear: For high-speed drilling in softer materials.
3. Impact Drilling Mode:
o Suitable for harder materials like masonry and concrete.
4. Easy Attachment System:
o Quick-release mechanism for secure attachment and removal from the cordless base unit.
5. Lightweight and Compact:
o At just 0.49 kg, the attachment is easy to maneuver, even for extended periods.
6. Safety Features:
o Insulated gripping surfaces to prevent electric shock.
o Firm grip design for stability during heavy drilling tasks.
o Built-in safety mechanisms to ensure proper torque and speed adjustments.

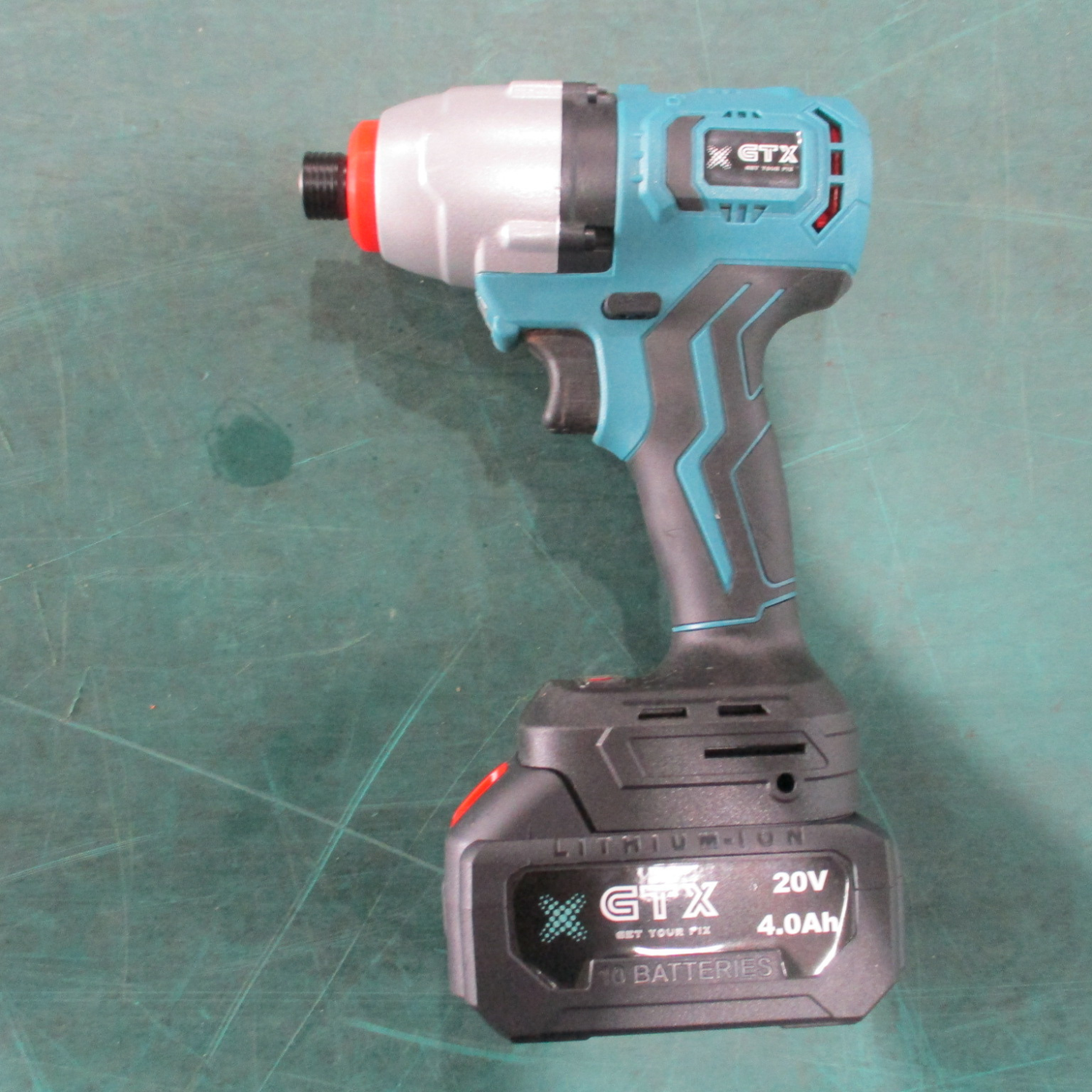

Impact Driver Attachment
Technical Specifications
Model: DYB-2104
Chuck: Size: 1/4" (6.35 mm)
Torque: 180 N·m
No-Load: Speed: 0–3,300 RPM
Blows: per Minute: 0–3,600 BPM
Net: Weight: 0.51 kg
Features of the Element
High Torque:
Delivers 180 N·m of torque for powerful performance, suitable for fastening large
screws and bolts.
Fast and Efficient:
High-speed operation with up to 3,300 RPM and 3,600 BPM ensures quick and precise
fastening tasks.
Lightweight and Compact:
Weighing only 0.51 kg, the attachment is easy to handle and ideal for extended
use.
Easy Driver Bit Installation:
Quick and secure installation with a sleeve mechanism to ensure driver bits
lock in place securely.
Safety Features:
Insulated gripping surfaces for safety when operating near live wires.
Designed to prevent hand fatigue with ergonomic handling.
Quick Attachment System:
Easily attach and detach from the DYB-21BL cordless base unit for seamless
transitions between tasks.

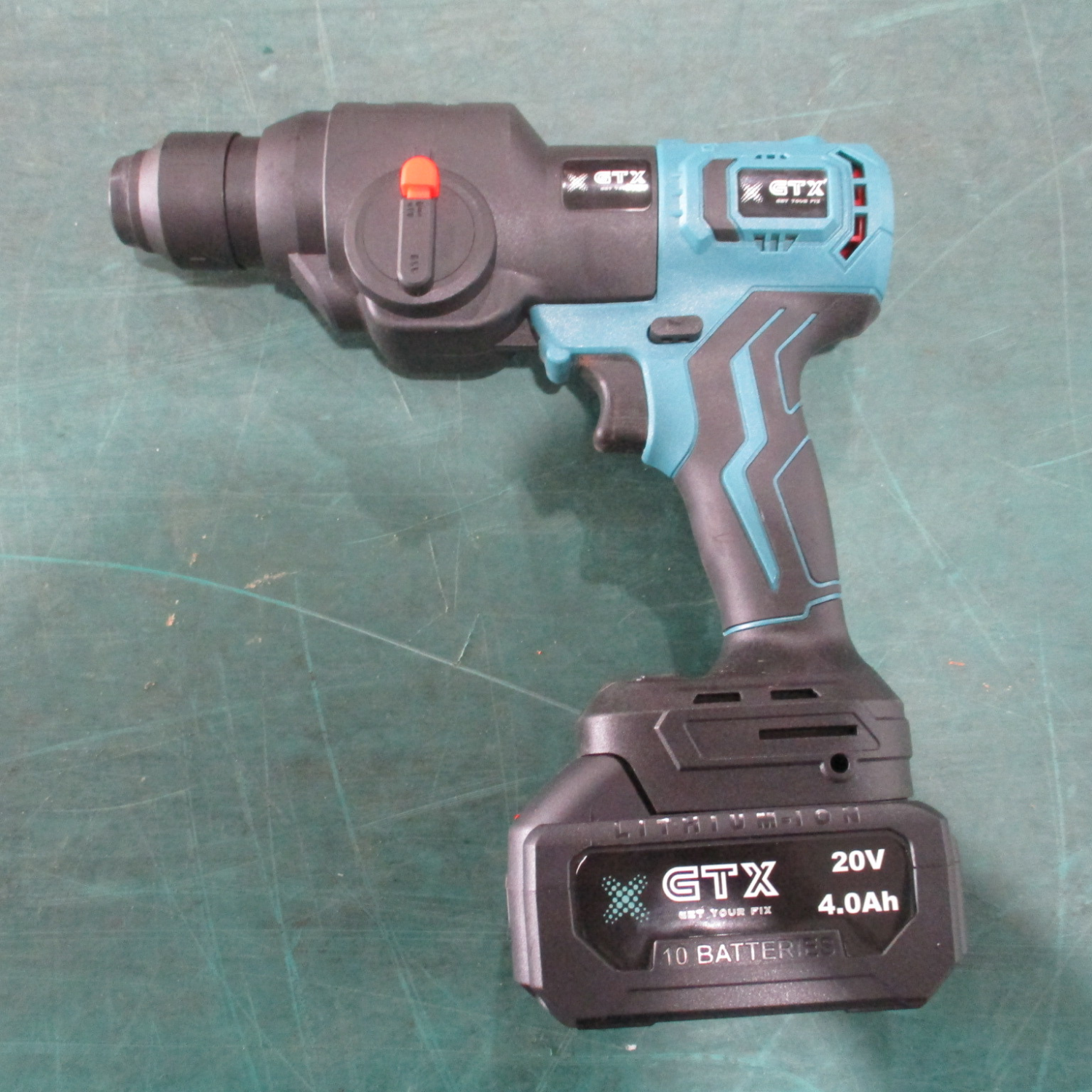

Combination Hammer
Technical Specifications
• Model: DYB-2114
• No-Load Speed: 0–2,000 RPM
• Blows per Minute (BPM): 0–5,500 BPM
• Net Weight: 0.68 kg
• Action Modes:
o Hammering with Rotation: For drilling in concrete and masonry.
o Rotation Only: For drilling in wood, metal, and plastic.
• Drill Bit Mechanism:
o Easy insertion and secure locking of the drill bit with a chuck cover.
Key Features
1. Dual Action Modes:
o Hammering with Rotation: Designed for high-impact tasks like drilling into concrete and masonry.
o Rotation Only: Handles traditional drilling tasks in wood, plastic, and metal.
2. High Performance:
o With a blow rate of 5,500 BPM and a speed of 2,000 RPM, this attachment delivers exceptional power for heavy-duty applications.
3. Ergonomic and Safe:
o Insulated gripping surfaces for operator safety.
o Requires a firm two-handed grip to maintain control during operation.
4. Lightweight Design:
o At just 0.68 kg, it’s easy to maneuver while maintaining stability for high-impact tasks.
5. Quick Bit Installation:
o Simple and secure drill bit installation and removal via the chuck cover mechanism.
6. Quick Attachment System:
o Easy to attach and detach from the DYB-21BL cordless base unit

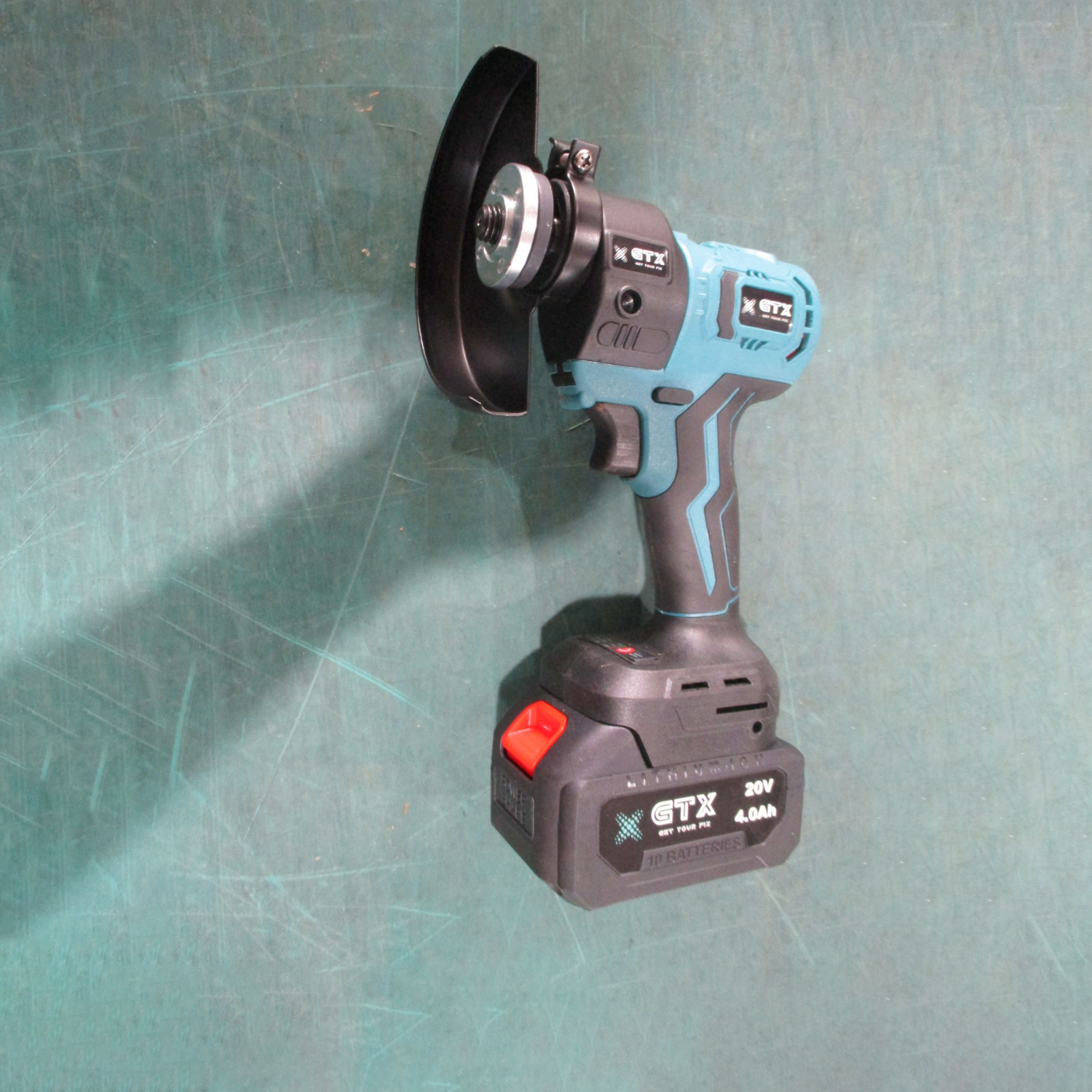

Grinder Attachment
Technical Specifications
• Model: DYB-2113
• Wheel Diameter:
o 100 mm (4")
o 125 mm (5")
• Strokes per Minute: 8,000 RPM
• Net Weight:
o 100 mm version: 0.26 kg
o 125 mm version: 0.35 kg
• Functionality:
o Designed for grinding, sanding, wire brushing, and abrasive cutting-off operations.
Key Features
1. Versatile Operations:
o Functions as a grinder, sander, wire brush, or cut-off tool, making it a versatile choice for DIY and professional projects.
2. High Speed:
o 8,000 RPM ensures efficient grinding and cutting, even for tough materials.
3. Lightweight Design:
o Compact and lightweight (as low as 0.26 kg), enabling easy handling and reduced fatigue during prolonged use.
4. Secure Accessory Installation:
o Shaft lock mechanism prevents spindle rotation during accessory changes, ensuring safety and precision.
5. Adjustable Wheel Guard:
o Easily mount and adjust the wheel guard for added safety during operations.
6. Quick Attachment System:
o Easily attach and detach the grinder to the cordless base unit for seamless transitions between tasks.
________________________________________
Usage Niche
1. Metalworking:
o Grinding and smoothing sharp edges, removing rust, or cutting through steel rods.
2. Construction:
o Cutting tiles, metal sheets, or bricks for renovation or building projects.
3. DIY Projects:
o Shaping or finishing custom metal or wood pieces.
4. Industrial Maintenance:
o Wire brushing for cleaning and preparing surfaces for welding or painting.
5. Home Repair:
o Trimming small materials or smoothing uneven surfaces.
Garden and Car Set Specifications

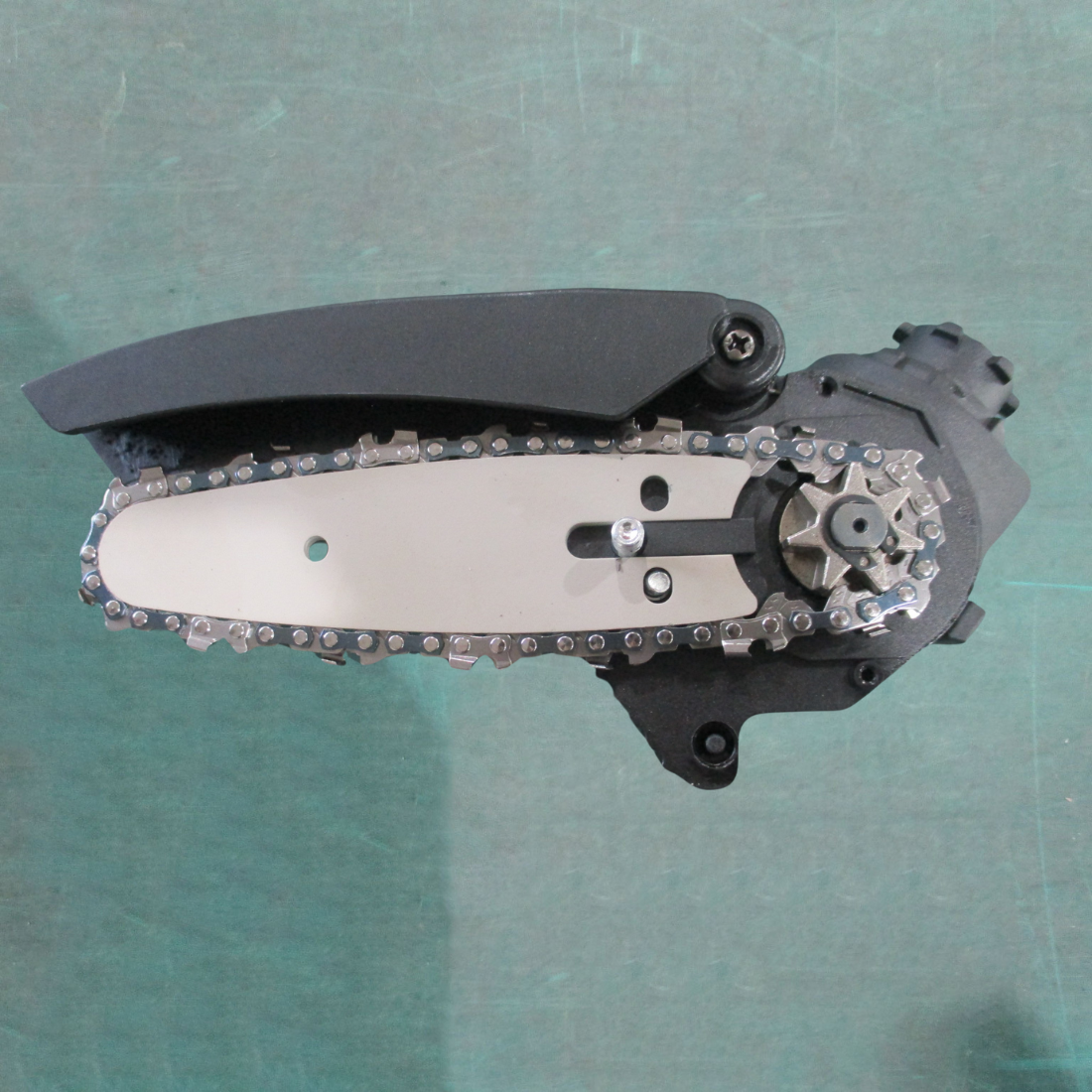

Chainsaw
Technical Specifications
• Attachment: Chainsaw
• Blade Length: 8 inches
• Speed: 6,500 RPM
• Weight: 0.85 kg
Key Features
1. High-Speed Performance:
o Operates at 6,500 RPM for efficient cutting through branches and logs.
2. Compact Design:
o Lightweight at 0.85 kg, making it ideal for prolonged use without fatigue.
3. Effortless Operation:
o Quick-start feature for immediate use.
o Low vibration design enhances user comfort and safety.
4. Durable Build:
o High-quality materials for extended durability and reliability.
5. Space-Saving Multi-Tool:
o Easily attachable to the DYB-21BL Power Unit, eliminating the need for multiple tools.
Blower Attachment
Technical Specifications
- Attachment: Blower
- Air Volume: 2.8 m³/min
- Air Speed: 80 m/s
- Weight: 0.7 kg
Key Features
1. High Air Volume and Speed:
o Generates 2.8 m³/min of air volume and 80 m/s airspeed, providing powerful cleaning for debris, dust, and leaves.
2. Lightweight and Portable:
o Weighing only 0.7 kg, it is easy to handle for prolonged cleaning tasks.
3. Versatile Applications:
o Suitable for garden care, workshops, garages, and home cleaning tasks.
4. Compact and Space-Saving:
o Attach to the DYB-21BL Power Unit to replace bulky, standalone blowers.
5. Quick Attachment System:
o Easily attach or remove the blower head for seamless transitions between tasks.

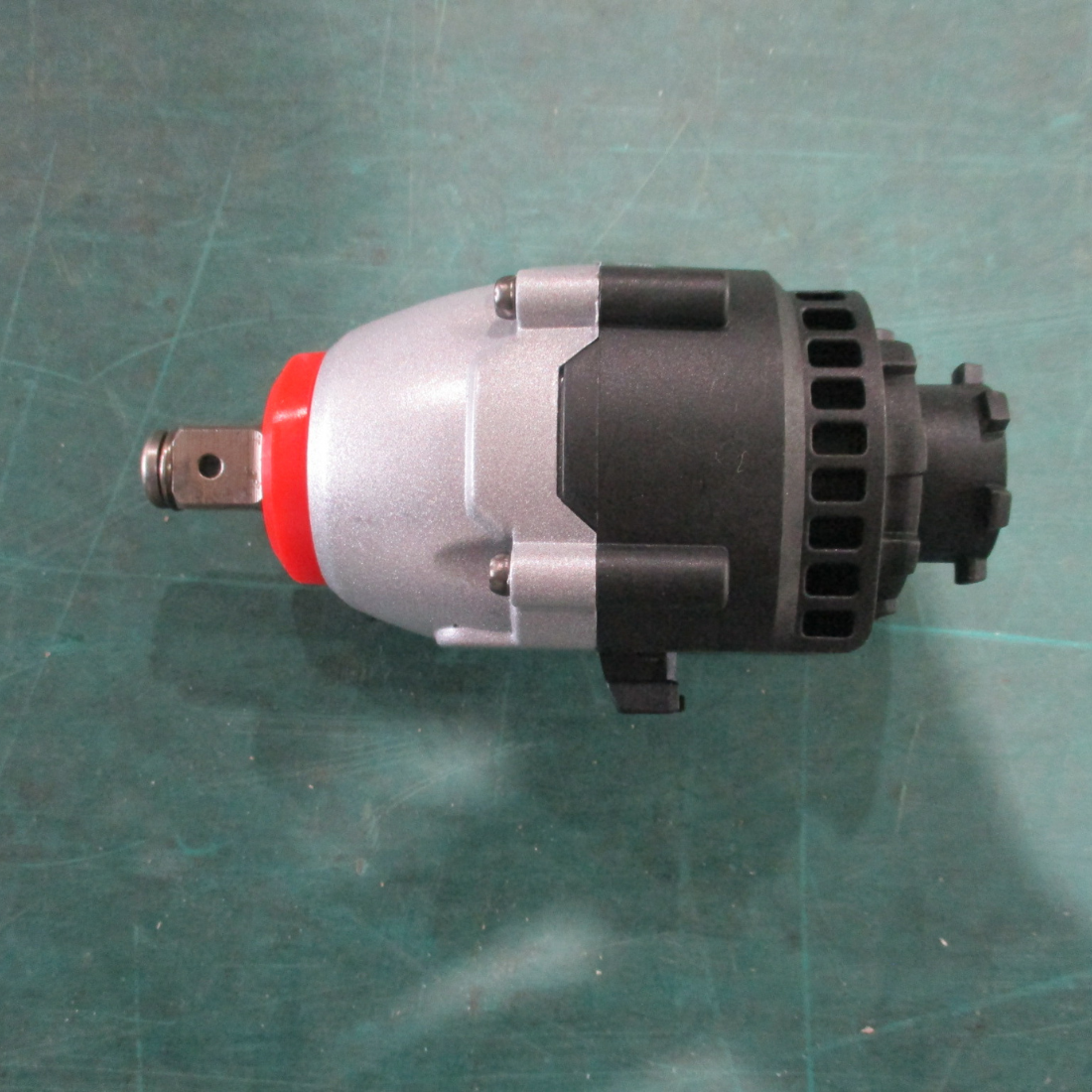

Impact Wrench
Technical Specifications
- Attachment: Impact Wrench
- Torque: Up to 300 N·m
- Drive Size: 1/2" square drive
- No-Load Speed: 0–2,600 RPM
- Impacts per Minute (IPM): 0–3,200 IPM
- Weight: 0.7 kg
Key Features
1. Powerful Torque:
o Delivers up to 300 N·m, making it ideal for heavy-duty tasks.
o Handles challenging applications like loosening rusted or overtightened bolts.
2. Lightweight Design:
o At only 0.7 kg, it’s easy to maneuver during extended tasks.
3. High Speed and Impact:
o With a no-load speed of 2,600 RPM and 3,200 IPM, it ensures rapid operation for efficiency.
4. Quick Drive Change:
o Features a 1/2" square drive for secure and fast bit changes.

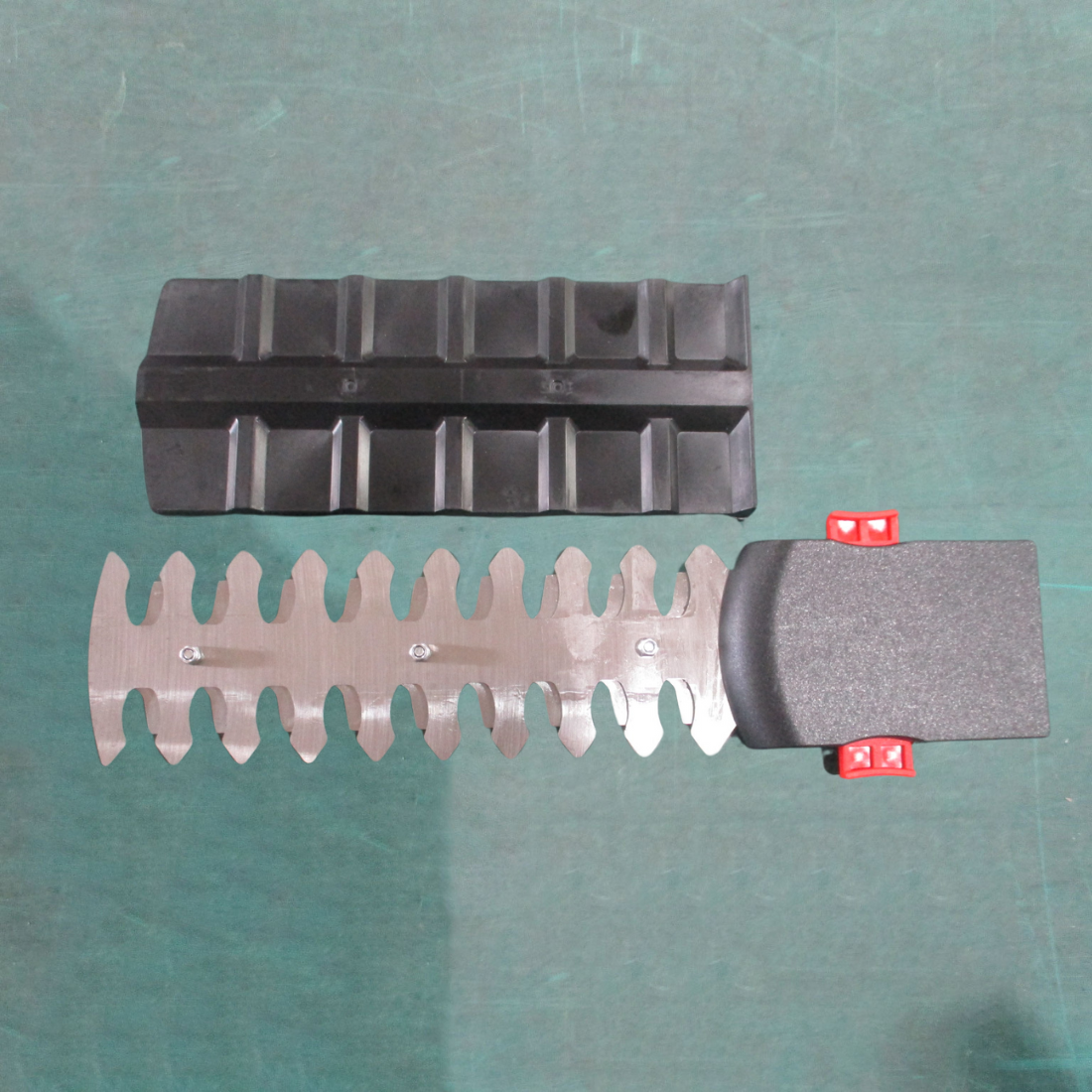

Hedge Trimmer Attachment
Technical Specifications
- Attachment: Hedge Trimmer
- Blade Length: 450 mm (18 inches)
- Stroke Rate: 1,500 strokes per minute
- Weight: 0.75 kg
Key Features
1. Precise Cutting:
o Double-edged blades ensure clean, smooth trimming for hedges and bushes.
o Stroke rate of 1,500 SPM enables efficient and accurate results.
2. Lightweight and Ergonomic:
o Weighs only 0.75 kg, reducing fatigue for prolonged tasks.
o Easy to maneuver for detailed shaping.
3. Quick Attachment System:
o Easily connect the trimmer head to the DYB-21BL Power Unit, simplifying transitions between tools.
4. Space-Saving Design:
o Replaces the need for a standalone hedge trimmer, saving storage space at home.

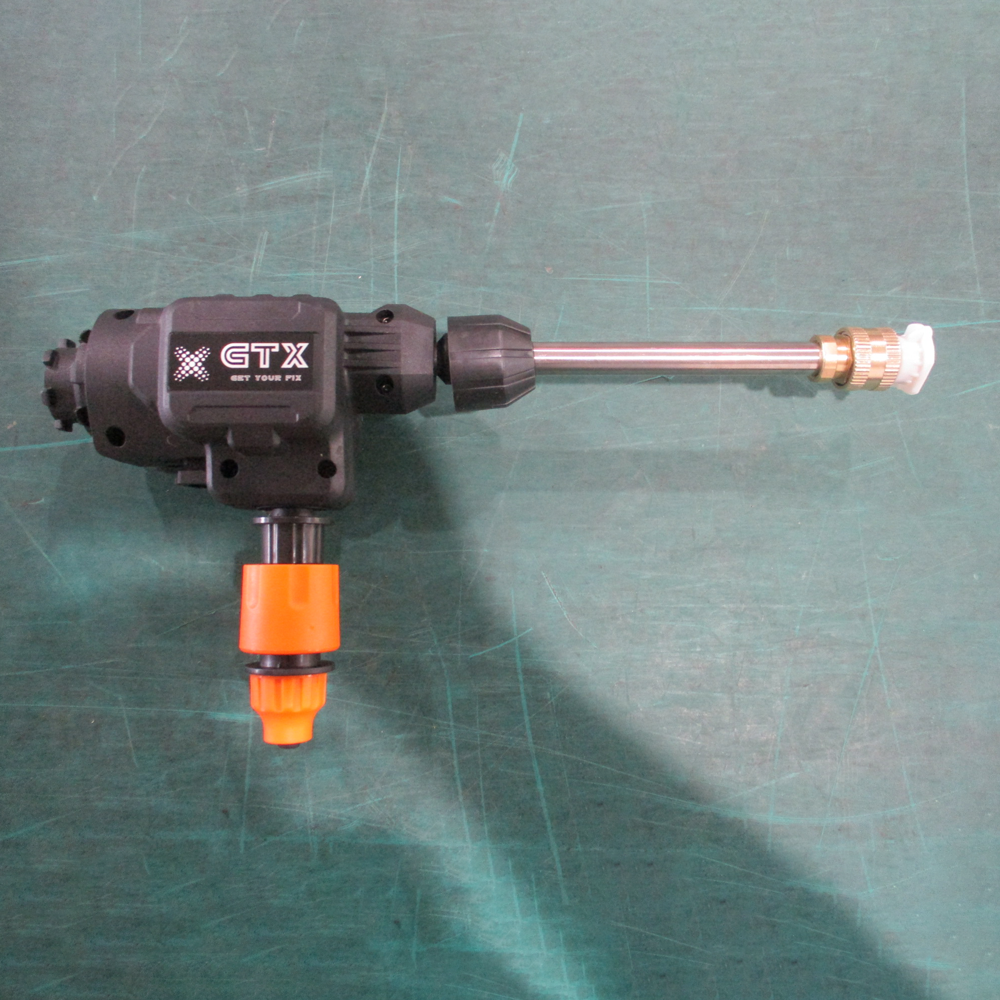

Pressure Washer
Technical Specifications
- Attachment: Pressure Washer
- Maximum Pressure: 2,000 PSI
- Flow Rate: 1.8 GPM (Gallons per Minute)
- Nozzle Options: Adjustable spray pattern for various cleaning applications.
- Weight: 0.9 kg
Key Features
1. Powerful Cleaning:
o Generates up to 2,000 PSI pressure for tough dirt and grime removal.
o Adjustable spray patterns for delicate or intense cleaning.
2. Compact and Lightweight:
o At 0.9 kg, it’s easy to handle for prolonged cleaning tasks.
3. Versatility:
o Designed for cleaning patios, vehicles, garden furniture, and outdoor surfaces.
4. Quick Attachment System:
o Easily connect the pressure washer to the DYB-21BL cordless base unit.
5. Eco-Friendly Design:
o Optimized water flow reduces waste while delivering high performance.

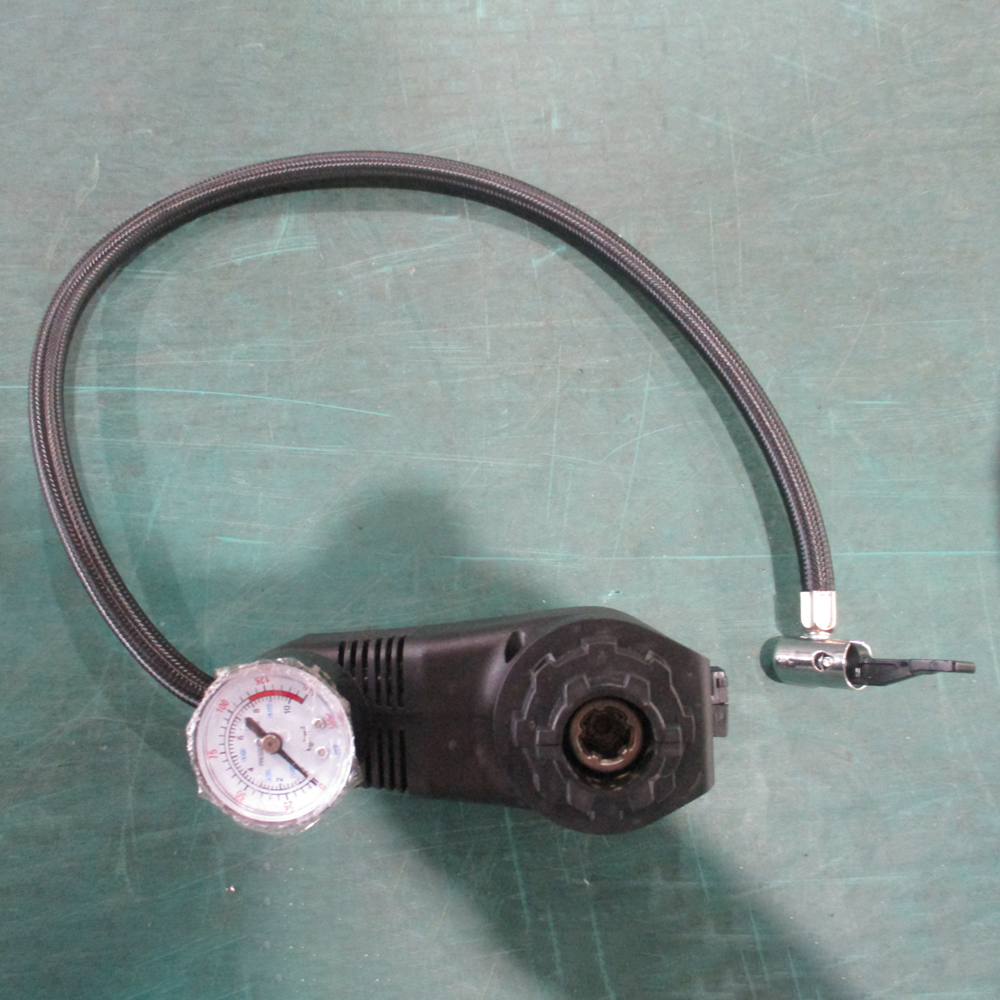

Inflator Attachment
Technical Specifications
- Attachment: Inflator
- Maximum Pressure: 150 PSI
- Air Flow: 15 L/min
- Weight: 0.6 kg
Key Features
1. High-Performance Inflation:
o Delivers up to 150 PSI, suitable for inflating car tires, sports equipment, and travel essentials.
2. Compact and Lightweight:
o At 0.6 kg, the inflator is portable and perfect for travel, ensuring you’re always prepared.
3. Emergency-Ready:
o Keep it in your car for road trips to avoid getting stuck with a flat tire.
4. Multi-Purpose Design:
o Includes multiple nozzles for inflating tires, bicycles, sports equipment, and air mattresses.
5. Quick Attachment System:
o Effortlessly connects to the DYB-21BL Power Unit for seamless operation.
Steel and Wood Set Specifications

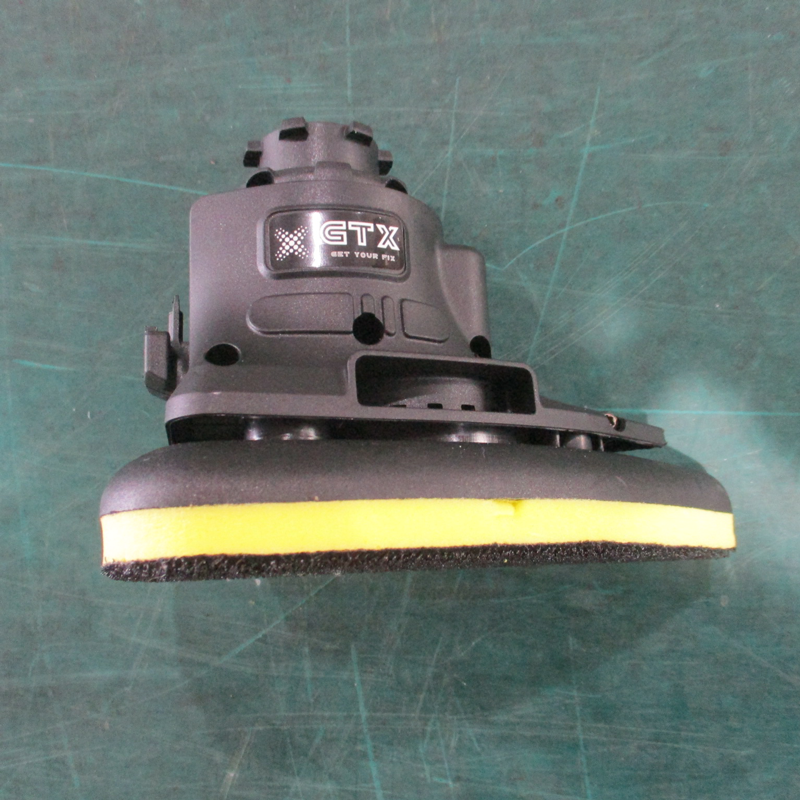

Sander Attachment
Technical Specifications
- Attachment: Sander
- Sanding Area: 125 mm diameter
- Speed: Adjustable up to 12,000 RPM
- Weight: 0.95 kg
Key Features
1. Adjustable High-Speed Sanding:
o Operates at speeds up to 12,000 RPM, ideal for detailed or high-volume sanding tasks.
2. Multi-Surface Versatility:
o Smooth finishes on wood, steel, and plastic.
3. Ergonomic and Lightweight Design:
o Weighs just 0.95 kg, reducing fatigue during extended sanding sessions.
4. Compact and Space-Saving:
o Designed to attach to the DYB-21BL Power Unit, saving the need for standalone sanders.

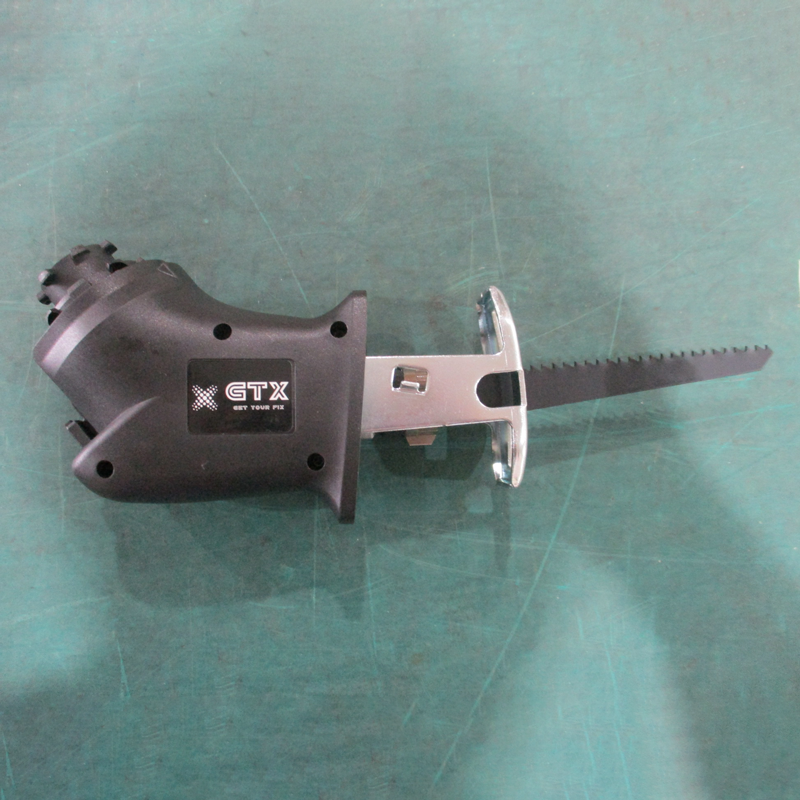

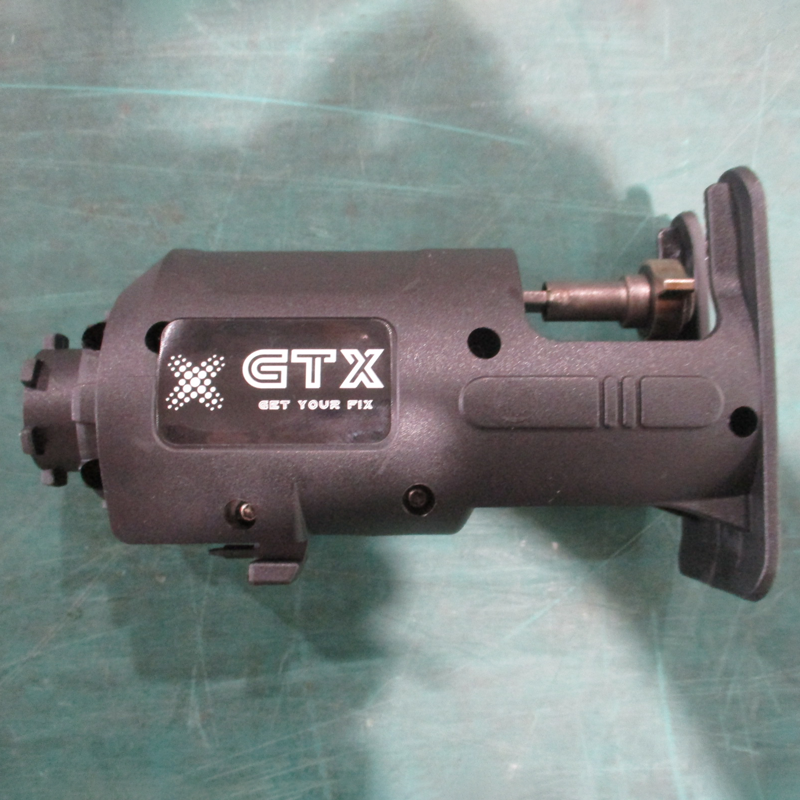

The Reciprocating Saw Attachment
Technical Specifications
• Attachment: Reciprocating Saw
• Stroke Length: 28 mm
• Stroke Speed: 0–3,000 SPM (Strokes Per Minute)
• Cutting Capacity:
o Wood: Up to 90 mm
o Steel: Up to 6 mm
• Weight: 1.5 kg
Key Features
1. Powerful Cutting Action:
o High stroke speed of 0–3,000 SPM and a stroke length of 28 mm for efficient cutting in wood, steel, and other materials.
2. Versatile Applications:
o Ideal for demolition, pruning, and cutting through tough materials.
3. Quick Blade Change System:
o Tool-free blade replacement for seamless transitions between tasks.
4. Lightweight and Ergonomic Design:
o At 1.5 kg, it’s balanced and comfortable for extended use.
5. Compact and Space-Saving:
o Attaches to the DYB-21BL Power Unit, replacing the need for a standalone reciprocating saw.
Usage Niche
1. DIY Projects:
o Cut wooden planks or pipes for home renovations or crafting.
2. Hobbyists:
o Create custom designs and handle detailed projects.
3. Lite Professional Work:
o Suitable for plumbers, electricians, and carpenters requiring powerful cutting on the go.
4. Homeowners:
o Prune garden trees or tackle small demolition jobs at home.
5. Daily Maintenance Work:
o Cut through steel pipes, wooden boards, or other materials efficiently.

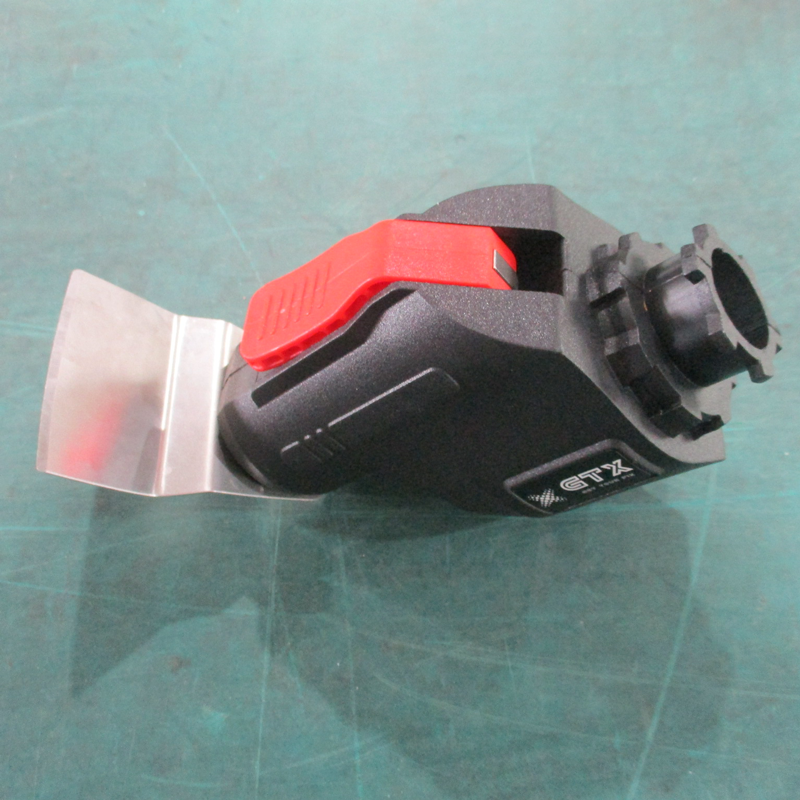

Oscillating Multi-Tool Attachment
Technical Specifications
1. High-Speed Oscillation:
o Adjustable speed of 15,000–20,000 OPM for precise cutting, sanding, and scraping tasks.
2. Lightweight and Compact:
o At just 0.65 kg, the attachment is easy to handle, even for extended periods.
3. Multi-Purpose Functionality:
o Designed for cutting wood, metal, plastic, sanding surfaces, and scraping.
4. Quick Blade Change:
o Tool-less system for fast and secure blade or accessory changes.
5. Space-Saving Design:
o Part of a multi-functional system that eliminates the need for separate tools.
Key Features
1. High-Speed Oscillation:
o Adjustable speed of 15,000–20,000 OPM for precise cutting, sanding, and scraping tasks.
2. Lightweight and Compact:
o At just 0.65 kg, the attachment is easy to handle, even for extended periods.
3. Multi-Purpose Functionality:
o Designed for cutting wood, metal, plastic, sanding surfaces, and scraping.
4. Quick Blade Change:
o Tool-less system for fast and secure blade or accessory changes.
5. Space-Saving Design:
o Part of a multi-functional system that eliminates the need for separate tools.

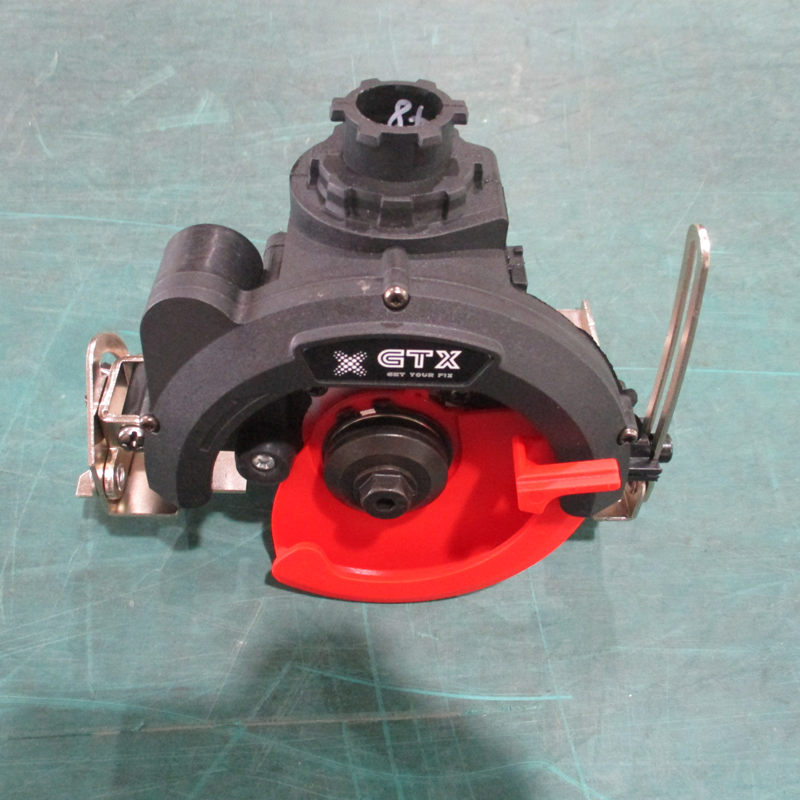

Circular Saw Attachment
Technical Specifications
- Attachment: Circular Saw
- Blade Diameter: 165 mm
- Cutting Depth: Adjustable up to 45 mm
- Speed: 4,500 RPM
- Weight: 1.4 kg
Key Features
1. High-Speed Cutting:
o Operates at 4,500 RPM, ensuring fast and precise cutting for wood projects.
2. Adjustable Cutting Depth:
o Cut up to 45 mm, making it suitable for various woodwork tasks and material thicknesses.
3. Ergonomic and Lightweight:
o Weighing only 1.4 kg, it provides easy handling for extended tasks.
4. Space-Saving Design:
o Attach to the DYB-21BL Power Unit, eliminating the need for a standalone circular saw.
5. Versatile Applications:
o Ideal for straight cuts, angled cuts, and detailed woodwork.
Usage Niche
1. DIY Wood Projects:
o Perfect for building furniture, shelves, or home decor pieces.
2. Hobbyists:
o Create custom wood designs with precision and ease.
3. Lite Professional Work:
o Suitable for carpenters or small workshop projects requiring accurate wood cutting.
4. Homeowners:
o Handle daily maintenance tasks like cutting wood for repairs or small renovations.
5. Daily Maintenance Work:
o Tackle precise wood cutting and shaping effortlessly.
Jigsaw Attachment
Technical Specifications
• Attachment: Jigsaw
• Cutting Capacity:
o Wood: Up to 65 mm
o Steel: Up to 6 mm
• Speed: 0–3,000 SPM (Strokes Per Minute)
• Weight: 1.3 kg
• Blade Type: Compatible with universal jigsaw blades
Key Features
1. Versatile Cutting:
o Cuts through wood, steel, and plastics with ease.
o Precision cutting for curves, straight lines, and intricate designs.
2. Speed Control:
o Adjustable speed from 0–3,000 SPM for a variety of materials and tasks.
3. Lightweight and Ergonomic:
o At 1.3 kg, it is easy to maneuver for prolonged use.
4. Quick Blade Change:
o Tool-less blade change system ensures quick and secure transitions between tasks.
5. Compact and Space-Saving:
o Eliminates the need for a standalone jigsaw by attaching to the DYB-21BL Power Unit.

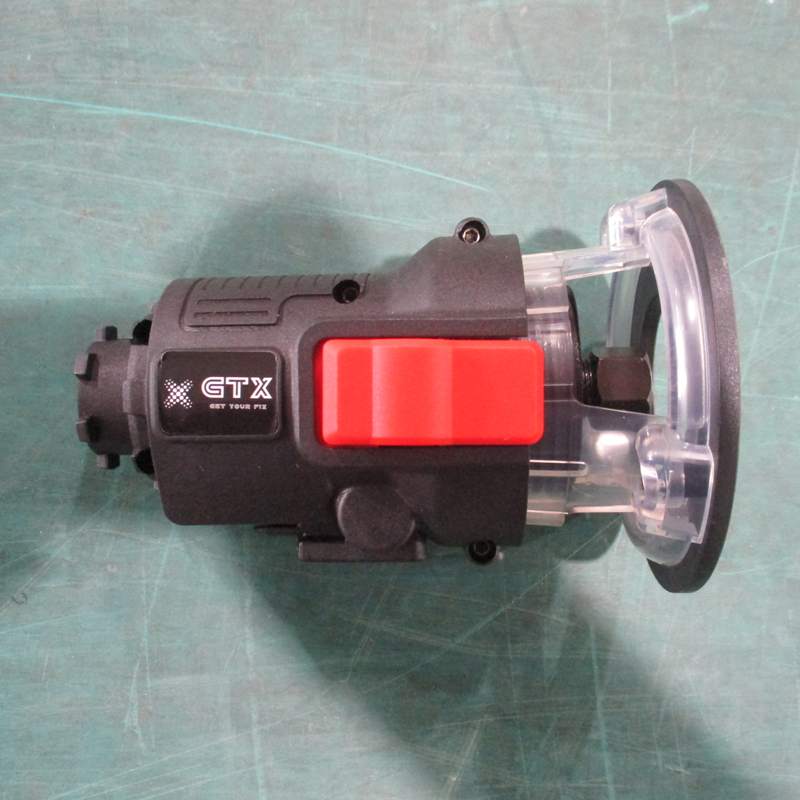

WoodTrimmer Attachment
Technical Specifications
- Attachment: Wood Trimmer
- Cutting Diameter: 255 mm
- Speed: 8,500 RPM
- Weight: 1.2 kg
Key Features
1. High-Speed Precision:
o Operates at 8,500 RPM, perfect for trimming and shaping wooden surfaces.
2. Wide Cutting Diameter:
o Covers up to 255 mm, ensuring efficient and smooth trimming for woodworking projects.
3. Lightweight and Ergonomic:
o At 1.2 kg, the attachment is easy to handle, reducing fatigue during extended use.
4. Space-Saving Design:
o Easily attaches to the DYB-21BL Power Unit, eliminating the need for a separate wood trimming tool.
5. Multi-Purpose for Woodworking:
o Ideal for daily woodworking maintenance, DIY carpentry, and lite professional wood-shaping tasks.
Usage Niche
1. DIY Wood Projects:
o Trim and shape wooden furniture or decorative pieces.
2. Hobbyists:
o Perfect for crafting and precision woodworking designs.
3. Lite Professional Work:
o Suitable for carpenters or small workshops focusing on wood trimming tasks.
4. Homeowners:
o Maintain and shape wood surfaces, such as wooden decks or railings.
5. Daily Maintenance Work:
o Smooth wooden edges or create precise finishes.
