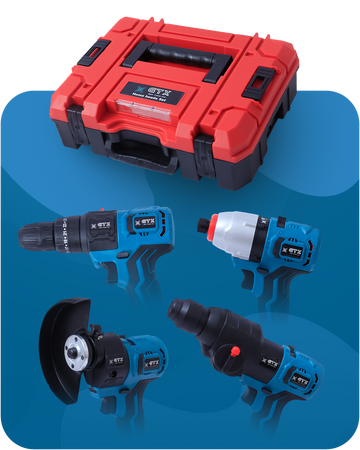

Smart Home Kit – For Everyday Maintenance and Repairs
Home Kit – A Smart Solution for Everyday Maintenance
A modular tool system that gives you full control over home upkeep—no need for professionals.
Designed for daily tasks like screwing, drilling, cleaning, and minor repairs—with simplicity, precision, and efficiency.
Always ready, always right—whatever your home needs.
Smart Home Kit – For Everyday Maintenance and Repairs
Smart Home Kit – For Everyday Maintenance and Repairs
Your all-in-one solution for routine home care.
A modular tool kit that gives you full control over household tasks—no need to call a pro.
Perfectly suited for everyday jobs like screwing, drilling, cleaning, and small repairs—done simply, precisely, and efficiently.
Always ready, always right—whatever your home needs.
✔ Saves time and hassle
✔ Designed for easy, comfortable use
✔ Ideal for routine maintenance and quick fixes
✔ Includes everything you need—in one place
Compact Rotary Hammer
A highly convenient hammer drill with two operating modes—standard drilling and hammer action—allowing smooth, fast transitions between tasks without switching tools.
Features high speed, ergonomic grip, and a quick-lock chuck for precise, comfortable work on light concrete, blocks, metal, and more.
Technical Specifications
• Model: DYB-2103
• Chuck Size: 10 mm
• Torque: 32 N·m
• Clutch Settings: 25+1 adjustable torque levels.
• No-Load Speed (RPM):
o Low: 0–400 RPM
o High: 0–1,450 RPM
• Blows per Minute (BPM):
o Low: 0–6,000 BPM
o High: 0–21,000 BPM
• Net Weight: 0.49 kg
Key Features
1. Adjustable Torque:
o 25+1 clutch settings to fine-tune torque for precision fastening and drilling tasks.
o Torque levels allow versatility, from light material drilling to heavy-duty fastening.
2. Two-Speed Functionality:
o Low Gear: For high-torque applications like driving screws.
o High Gear: For high-speed drilling in softer materials.
3. Impact Drilling Mode:
o Suitable for harder materials like masonry and concrete.
4. Easy Attachment System:
o Quick-release mechanism for secure attachment and removal from the cordless base unit.
5. Lightweight and Compact:
o At just 0.49 kg, the attachment is easy to maneuver, even for extended periods.
6. Safety Features:
o Insulated gripping surfaces to prevent electric shock.
o Firm grip design for stability during heavy drilling tasks.
o Built-in safety mechanisms to ensure proper torque and speed adjustments.

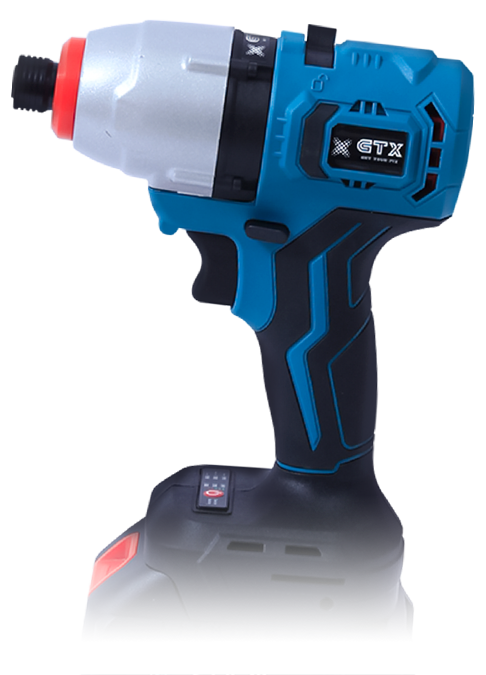

1/4" Impact Driver
A high-torque, fast-impact driver built for strong, accurate fastening—even in tough materials and tight spaces.
Features quick bit locking, a compact build, and maximum grip comfort for smooth, safe, and efficient performance in every task.
Technical Specifications
Model: DYB-2104
Chuck: Size: 1/4" (6.35 mm)
Torque: 180 N·m
No-Load: Speed: 0–3,300 RPM
Blows: per Minute: 0–3,600 BPM
Net: Weight: 0.51 kg
Key Features
High Torque:
Delivers 180 N·m of torque for powerful performance, suitable for fastening large
screws and bolts.
Fast and Efficient:
High-speed operation with up to 3,300 RPM and 3,600 BPM ensures quick and precise
fastening tasks.
Lightweight and Compact:
Weighing only 0.51 kg, the attachment is easy to handle and ideal for extended
use.
Easy Driver Bit Installation:
Quick and secure installation with a sleeve mechanism to ensure driver bits
lock in place securely.
Safety Features:
Insulated gripping surfaces for safety when operating near live wires.
Designed to prevent hand fatigue with ergonomic handling.
Quick Attachment System:
Easily attach and detach from the DYB-21BL cordless base unit for seamless
transitions between tasks.

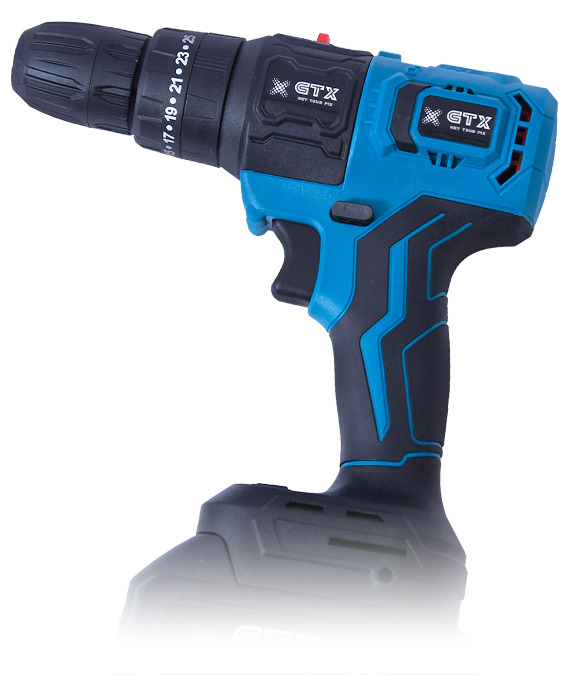

10 mm Hammer Drill
A dual-speed hammer drill that combines drilling, screwing, and impact mode—all in one compact, easy-to-use tool.
An advanced 25+1 clutch setting offers full control for both delicate work and demanding projects.
Insulated grip and lightweight design allow for extended use without strain or fatigue.
Technical Specifications
• Model: DYB-2114
• No-Load Speed: 0–2,000 RPM
• Blows per Minute (BPM): 0–5,500 BPM
• Net Weight: 0.68 kg
• Action Modes:
o Hammering with Rotation: For drilling in concrete and masonry.
o Rotation Only: For drilling in wood, metal, and plastic.
• Drill Bit Mechanism:
o Easy insertion and secure locking of the drill bit with a chuck cover.
Key Features
1. Dual Action Modes:
o Hammering with Rotation: Designed for high-impact tasks like drilling into concrete and masonry.
o Rotation Only: Handles traditional drilling tasks in wood, plastic, and metal.
2. High Performance:
o With a blow rate of 5,500 BPM and a speed of 2,000 RPM, this attachment delivers exceptional power for heavy-duty applications.
3. Ergonomic and Safe:
o Insulated gripping surfaces for operator safety.
o Requires a firm two-handed grip to maintain control during operation.
4. Lightweight Design:
o At just 0.68 kg, it’s easy to maneuver while maintaining stability for high-impact tasks.
5. Quick Bit Installation:
o Simple and secure drill bit installation and removal via the chuck cover mechanism.
6. Quick Attachment System:
o Easy to attach and detach from the DYB-21BL cordless base unit

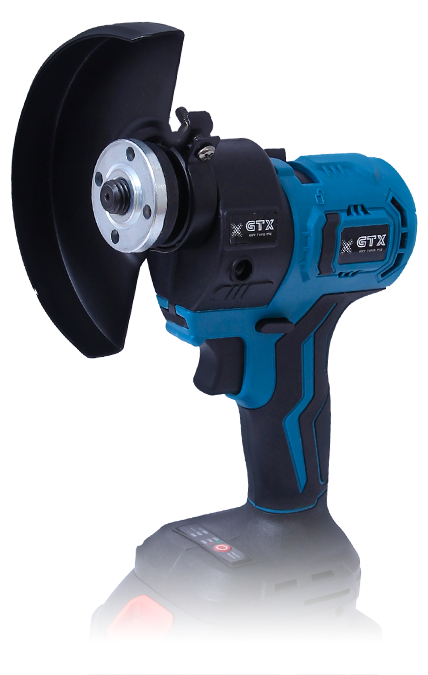

4"/5" Angle Grinder
A lightweight yet powerful angle grinder designed for accurate cutting and polishing across various materials.
Choose between 4" or 5" disc sizes as needed. Includes spindle lock, adjustable guard, and ergonomic design for safe, controlled, and comfortable operation—even during extended use.
Technical Specifications
• Model: DYB-2113
• Wheel Diameter:
o 100 mm (4")
o 125 mm (5")
• Strokes per Minute: 8,000 RPM
• Net Weight:
o 100 mm version: 0.26 kg
o 125 mm version: 0.35 kg
• Functionality:
o Designed for grinding, sanding, wire brushing, and abrasive cutting-off operations.
Key Features
1. Versatile Operations:
o Functions as a grinder, sander, wire brush, or cut-off tool, making it a versatile choice for DIY and professional projects.
2. High Speed:
o 8,000 RPM ensures efficient grinding and cutting, even for tough materials.
3. Lightweight Design:
o Compact and lightweight (as low as 0.26 kg), enabling easy handling and reduced fatigue during prolonged use.
4. Secure Accessory Installation:
o Shaft lock mechanism prevents spindle rotation during accessory changes, ensuring safety and precision.
5. Adjustable Wheel Guard:
o Easily mount and adjust the wheel guard for added safety during operations.
6. Quick Attachment System:
o Easily attach and detach the grinder to the cordless base unit for seamless transitions between tasks.
________________________________________
Usage Niche
1. Metalworking:
o Grinding and smoothing sharp edges, removing rust, or cutting through steel rods.
2. Construction:
o Cutting tiles, metal sheets, or bricks for renovation or building projects.
3. DIY Projects:
o Shaping or finishing custom metal or wood pieces.
4. Industrial Maintenance:
o Wire brushing for cleaning and preparing surfaces for welding or painting.
5. Home Repair:
o Trimming small materials or smoothing uneven surfaces.
