GTX-DIY
Revolutionize your crafting and construction projects with the Steel and Wood Bundle, featuring the Reciprocating Saw, Circular Saw, Chain Saw, Oscillating Tool, Sander, Multi-Function Cutter, Polisher, Jig Saw, and Trimmer. This bundle is your ultimate toolkit for cutting, sanding, shaping, and polishing both steel and wood with unmatched precision and efficiency.Whether you’re a DIY enthusiast, a woodworker, a hobbyist, or a lite professional, this bundle ensures that no task is too big or too small. From trimming and sanding fine woodwork to cutting through tough steel, it’s the all-in-one solution for achieving professional results in your home, workshop, or job site.
GTX-DIY
ערכת הכלים המושלמת לעבודות עץ, מתכת ובנייה – כוללת גוף עבודה אלחוטי חזק וקל משקל עם 10 ראשים מתחלפים המתאימים למגוון עצום של יישומים: חיתוך עץ, השחזת מתכת, הברגות, קידוחים, ליטוש ועוד.
המערכת פועלת באמצעות סוללה נטענת 20V (לא כלולה), ומציעה פתרון חסכוני במקום, עוצמתי בשטח, ונוח במיוחד לתחזוקה שוטפת.
אידיאלית עבור אנשי מקצוע, חובבי DIY, נגרים, מתקיני גבס, טכנאי רכב וכל מי שמחפש כלי אחד שמחליף עשרה.
✔ 10 ראשים מתחלפים
✔ גימור מדויק ועמידות גבוהה
✔ מתאים לפרויקטים בבית, בנגרות, ברכב ובאתר הבנייה
✔ שדרוג אמיתי לכל ארגז כלים
Key Feature
1. Makita-Compatible Design:
- Use Makita batteries on the DYB-21BL main unit, ensuring flexibility for tool owners.
- DYB-21BL batteries can also power Makita tools, creating a dual-compatible ecosystem.
2. Three-Speed Operation:
- Low (0–13,000 RPM): Ideal for precision tasks like screwing or drilling into soft materials.
- Medium (0–20,000 RPM): Perfect for trimming, sanding, or basic cutting tasks.
- High (0–24,000 RPM): Provides maximum power for heavy-duty cutting, grinding, and more.
18 Interchangeable Attachments:
- Covers a wide range of applications, from drilling and cutting to gardening and cleaning.
- Examples include impact drills, chain saws, trimmers, and blowers.
Battery Indicators:
- 75%-100%: Fully charged and ready.
- 50%-75%: Mid-level charge.
- 25%-50%: Low charge—time to recharge.
Compact and Lightweight:
- Weighing only 0.56 kg, it’s easy to handle for extended periods.
Built-In Safety Features:
- Automatic battery shutoff to prevent overheating or over-discharging.
- Reversing switch with a safety lock for secure operation.
Technical Specifications
Model: DYB-21BL
Rated Voltage: D.C. 18V - 21V max (20V compatible)
Battery Options: 2.0Ah and 4.0Ah lithium-ion
Makita Compatibility: Compatible with Makita batteries and tools
No-Load Speed (RPM): Low: 0 - 13,000 / Medium: 0 - 20,000 / High: 0 - 24,000
Net Weight: 0.56kg
Battery Indicators: 75%-100%, 50%-75%, 25%-50%
Tool Compatibility: 18 interchangeable attachments
Steel and Wood Set Specifications

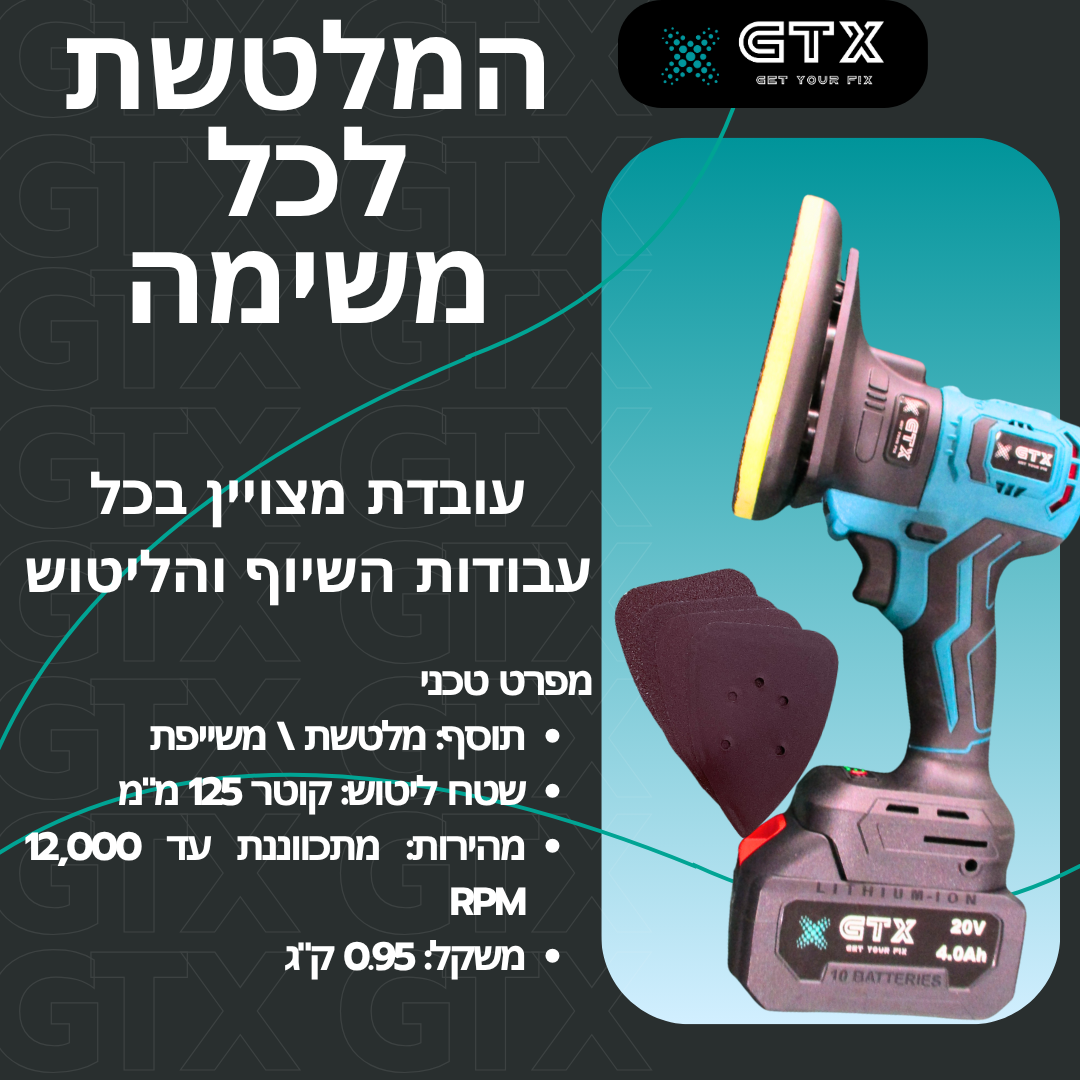

Sander Attachment
Technical Specifications
- Attachment: Sander
- Sanding Area: 125 mm diameter
- Speed: Adjustable up to 12,000 RPM
- Weight: 0.95 kg
Key Features
1. Adjustable High-Speed Sanding:
o Operates at speeds up to 12,000 RPM, ideal for detailed or high-volume sanding tasks.
2. Multi-Surface Versatility:
o Smooth finishes on wood, steel, and plastic.
3. Ergonomic and Lightweight Design:
o Weighs just 0.95 kg, reducing fatigue during extended sanding sessions.
4. Compact and Space-Saving:
o Designed to attach to the DYB-21BL Power Unit, saving the need for standalone sanders.
The Reciprocating Saw Attachment
Technical Specifications
• Attachment: Reciprocating Saw
• Stroke Length: 28 mm
• Stroke Speed: 0–3,000 SPM (Strokes Per Minute)
• Cutting Capacity:
o Wood: Up to 90 mm
o Steel: Up to 6 mm
• Weight: 1.5 kg
Key Features
1. Powerful Cutting Action:
o High stroke speed of 0–3,000 SPM and a stroke length of 28 mm for efficient cutting in wood, steel, and other materials.
2. Versatile Applications:
o Ideal for demolition, pruning, and cutting through tough materials.
3. Quick Blade Change System:
o Tool-free blade replacement for seamless transitions between tasks.
4. Lightweight and Ergonomic Design:
o At 1.5 kg, it’s balanced and comfortable for extended use.
5. Compact and Space-Saving:
o Attaches to the DYB-21BL Power Unit, replacing the need for a standalone reciprocating saw.
Usage Niche
1. DIY Projects:
o Cut wooden planks or pipes for home renovations or crafting.
2. Hobbyists:
o Create custom designs and handle detailed projects.
3. Lite Professional Work:
o Suitable for plumbers, electricians, and carpenters requiring powerful cutting on the go.
4. Homeowners:
o Prune garden trees or tackle small demolition jobs at home.
5. Daily Maintenance Work:
o Cut through steel pipes, wooden boards, or other materials efficiently.

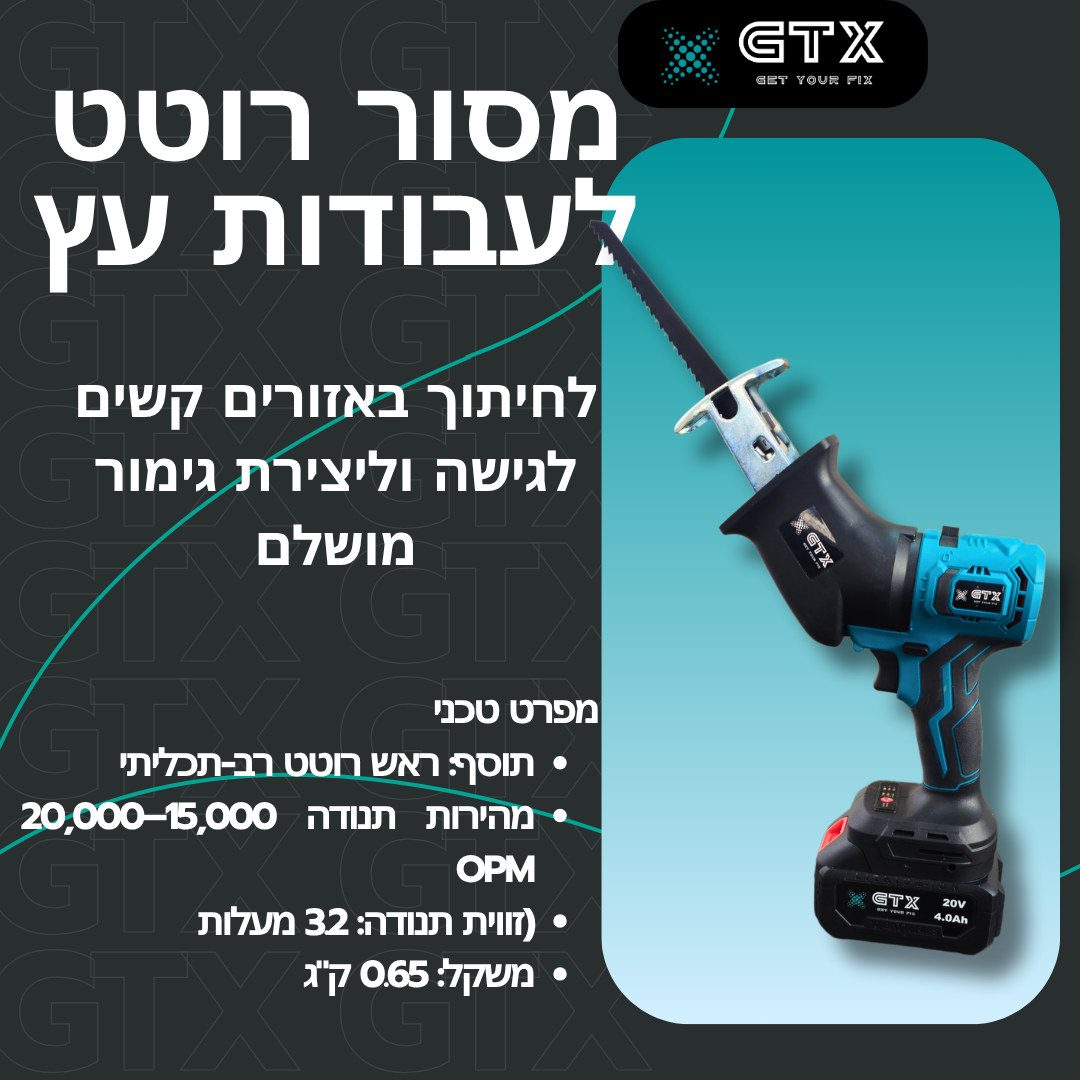

Oscillating Multi-Tool Attachment
Technical Specifications
1. High-Speed Oscillation:
o Adjustable speed of 15,000–20,000 OPM for precise cutting, sanding, and scraping tasks.
2. Lightweight and Compact:
o At just 0.65 kg, the attachment is easy to handle, even for extended periods.
3. Multi-Purpose Functionality:
o Designed for cutting wood, metal, plastic, sanding surfaces, and scraping.
4. Quick Blade Change:
o Tool-less system for fast and secure blade or accessory changes.
5. Space-Saving Design:
o Part of a multi-functional system that eliminates the need for separate tools.
Key Features
1. High-Speed Oscillation:
o Adjustable speed of 15,000–20,000 OPM for precise cutting, sanding, and scraping tasks.
2. Lightweight and Compact:
o At just 0.65 kg, the attachment is easy to handle, even for extended periods.
3. Multi-Purpose Functionality:
o Designed for cutting wood, metal, plastic, sanding surfaces, and scraping.
4. Quick Blade Change:
o Tool-less system for fast and secure blade or accessory changes.
5. Space-Saving Design:
o Part of a multi-functional system that eliminates the need for separate tools.

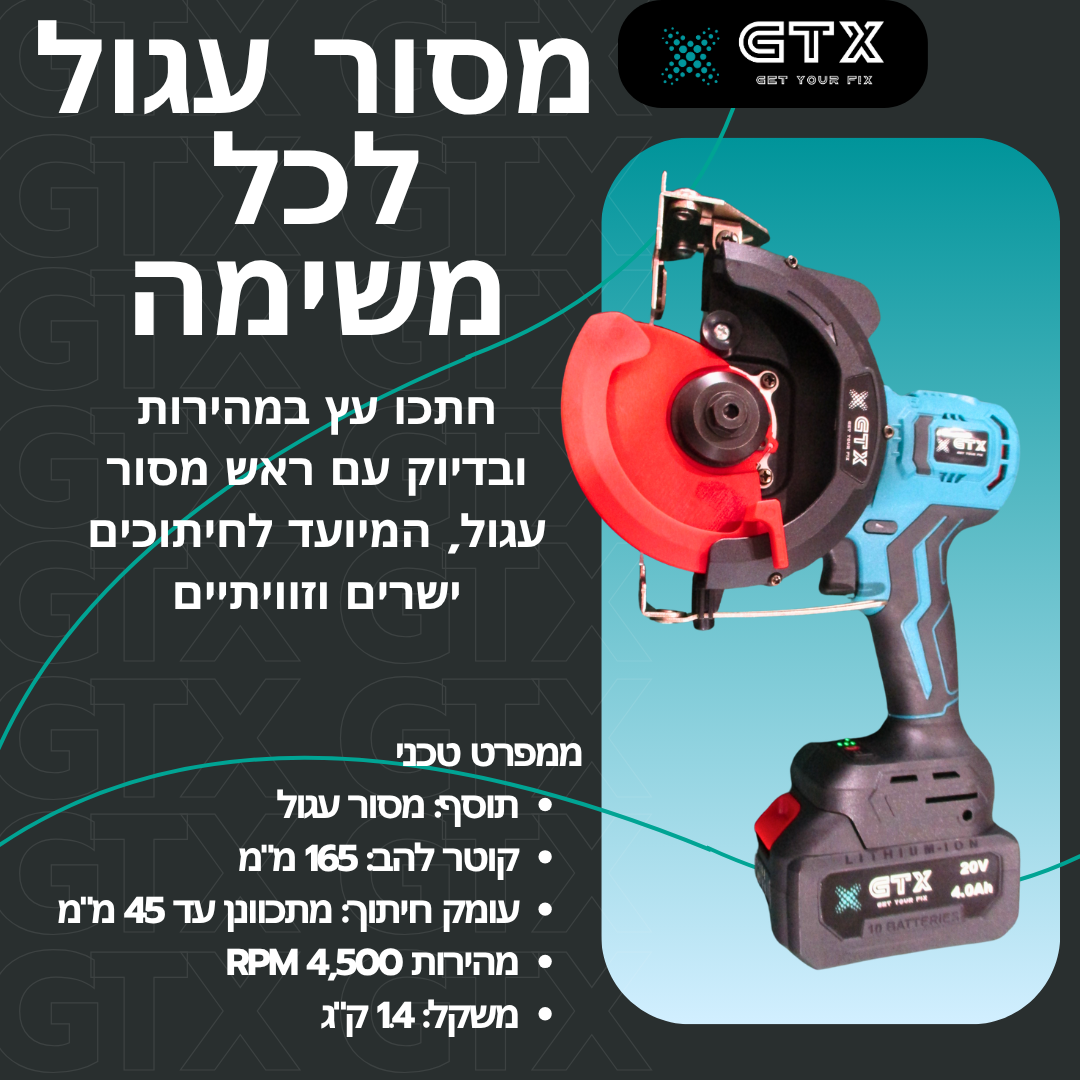

Circular Saw Attachment
Technical Specifications
- Attachment: Circular Saw
- Blade Diameter: 165 mm
- Cutting Depth: Adjustable up to 45 mm
- Speed: 4,500 RPM
- Weight: 1.4 kg
Key Features
1. High-Speed Cutting:
o Operates at 4,500 RPM, ensuring fast and precise cutting for wood projects.
2. Adjustable Cutting Depth:
o Cut up to 45 mm, making it suitable for various woodwork tasks and material thicknesses.
3. Ergonomic and Lightweight:
o Weighing only 1.4 kg, it provides easy handling for extended tasks.
4. Space-Saving Design:
o Attach to the DYB-21BL Power Unit, eliminating the need for a standalone circular saw.
5. Versatile Applications:
o Ideal for straight cuts, angled cuts, and detailed woodwork.
Usage Niche
1. DIY Wood Projects:
o Perfect for building furniture, shelves, or home decor pieces.
2. Hobbyists:
o Create custom wood designs with precision and ease.
3. Lite Professional Work:
o Suitable for carpenters or small workshop projects requiring accurate wood cutting.
4. Homeowners:
o Handle daily maintenance tasks like cutting wood for repairs or small renovations.
5. Daily Maintenance Work:
o Tackle precise wood cutting and shaping effortlessly.

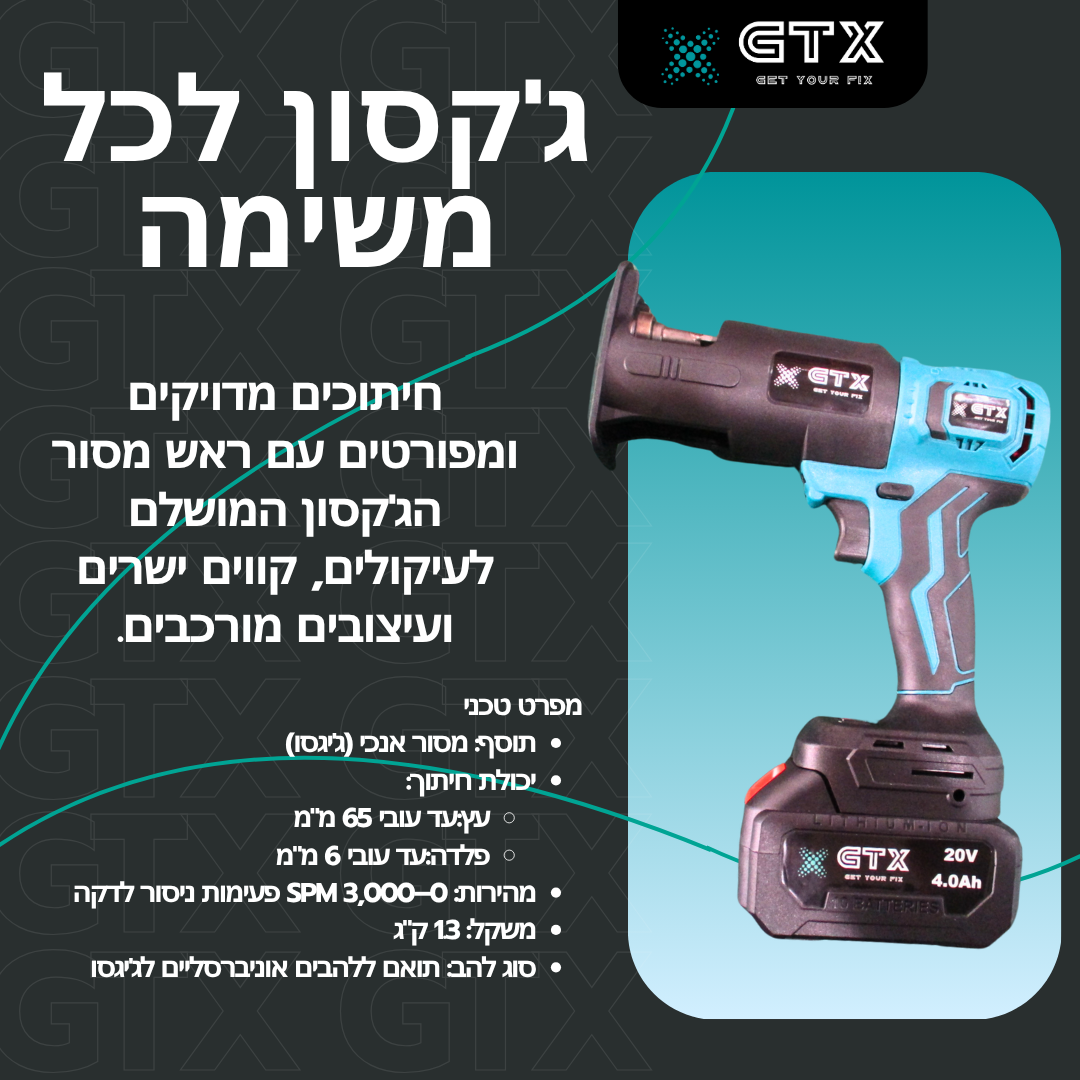

Jigsaw Attachment
Technical Specifications
• Attachment: Jigsaw
• Cutting Capacity:
o Wood: Up to 65 mm
o Steel: Up to 6 mm
• Speed: 0–3,000 SPM (Strokes Per Minute)
• Weight: 1.3 kg
• Blade Type: Compatible with universal jigsaw blades
Key Features
1. Versatile Cutting:
o Cuts through wood, steel, and plastics with ease.
o Precision cutting for curves, straight lines, and intricate designs.
2. Speed Control:
o Adjustable speed from 0–3,000 SPM for a variety of materials and tasks.
3. Lightweight and Ergonomic:
o At 1.3 kg, it is easy to maneuver for prolonged use.
4. Quick Blade Change:
o Tool-less blade change system ensures quick and secure transitions between tasks.
5. Compact and Space-Saving:
o Eliminates the need for a standalone jigsaw by attaching to the DYB-21BL Power Unit.

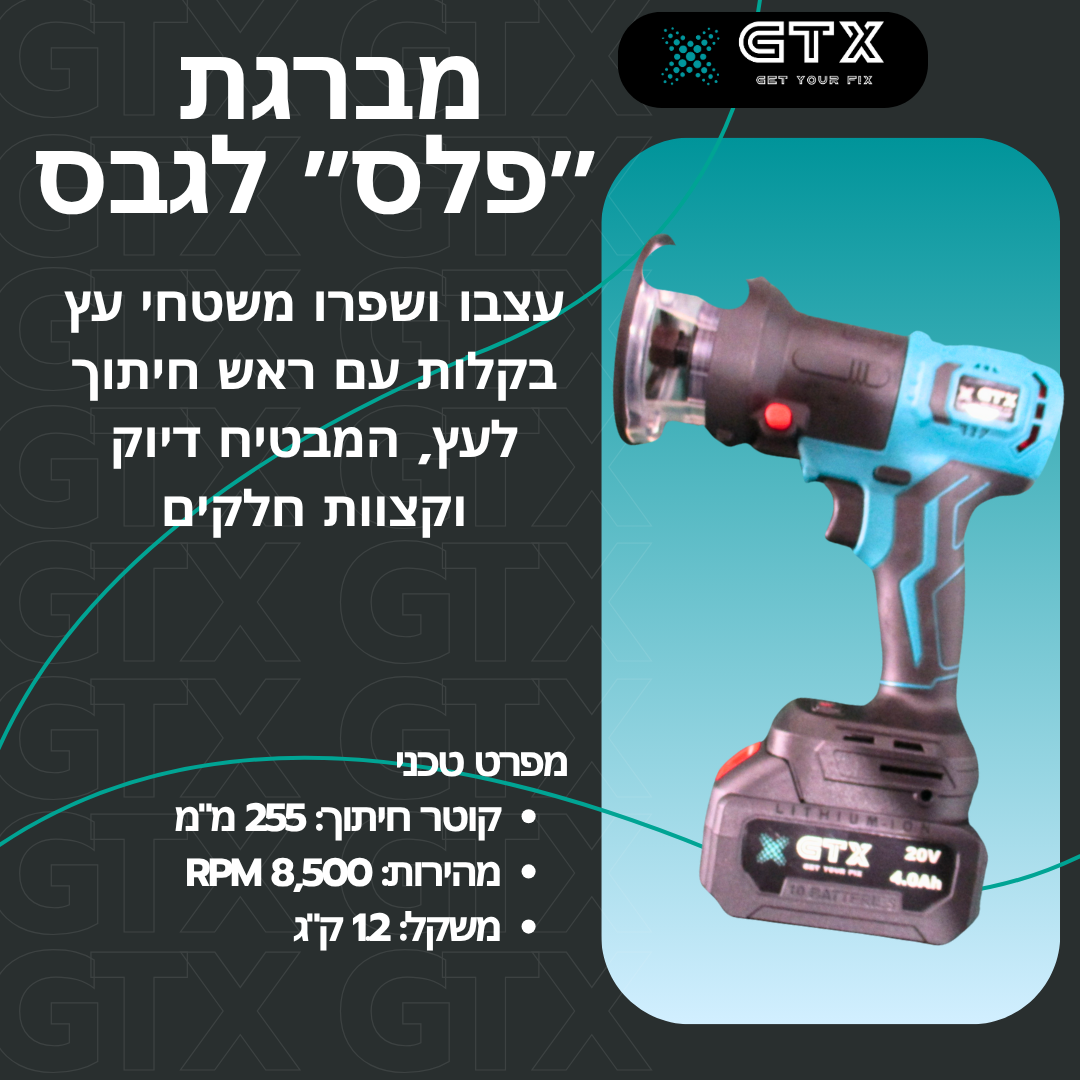

WoodTrimmer Attachment
Technical Specifications
- Attachment: Wood Trimmer
- Cutting Diameter: 255 mm
- Speed: 8,500 RPM
- Weight: 1.2 kg
Key Features
1. High-Speed Precision:
o Operates at 8,500 RPM, perfect for trimming and shaping wooden surfaces.
2. Wide Cutting Diameter:
o Covers up to 255 mm, ensuring efficient and smooth trimming for woodworking projects.
3. Lightweight and Ergonomic:
o At 1.2 kg, the attachment is easy to handle, reducing fatigue during extended use.
4. Space-Saving Design:
o Easily attaches to the DYB-21BL Power Unit, eliminating the need for a separate wood trimming tool.
5. Multi-Purpose for Woodworking:
o Ideal for daily woodworking maintenance, DIY carpentry, and lite professional wood-shaping tasks.
Usage Niche
1. DIY Wood Projects:
o Trim and shape wooden furniture or decorative pieces.
2. Hobbyists:
o Perfect for crafting and precision woodworking designs.
3. Lite Professional Work:
o Suitable for carpenters or small workshops focusing on wood trimming tasks.
4. Homeowners:
o Maintain and shape wood surfaces, such as wooden decks or railings.
5. Daily Maintenance Work:
o Smooth wooden edges or create precise finishes.
